Long-Range Monitoring Station
Tilt-rotor VTOL drone with 107-minute endurance and 30 km range, paired with an autonomous nest station featuring automatic battery swap for continuous BVLOS infrastructure monitoring.
Fixed-Wing Efficiency. Multi-Rotor Precision.

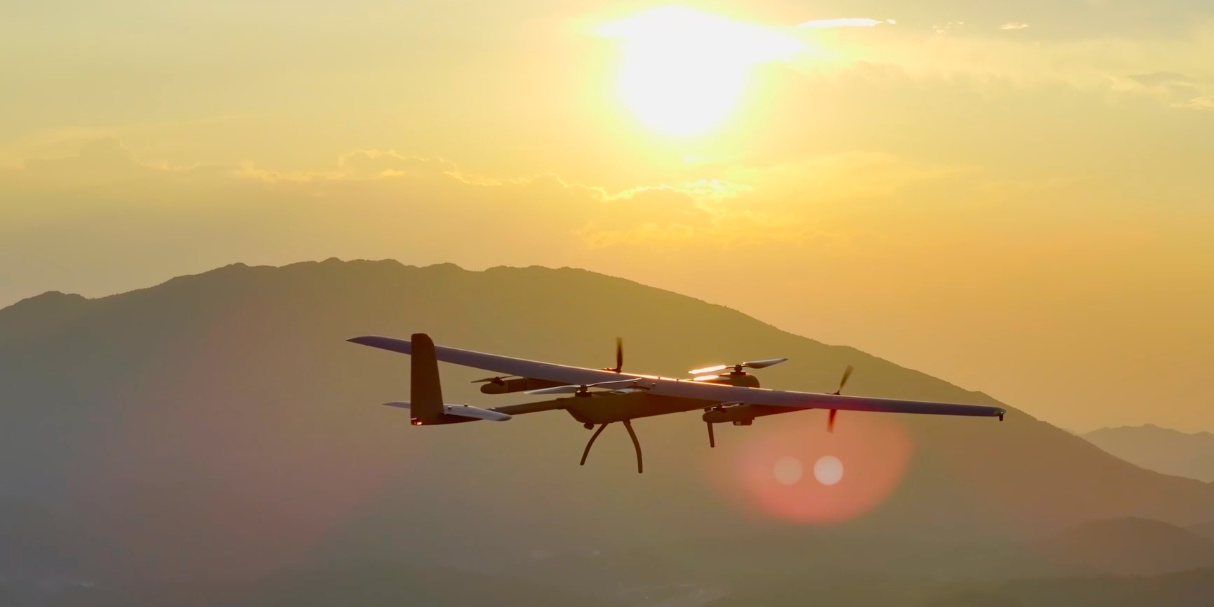

A tilt-rotor VTOL that launches vertically, transitions to efficient fixed-wing cruise at 17–30 m/s, and lands vertically back in the nest — no runway required. 107 minutes of flight time covers vast infrastructure corridors in a single sortie.
Aircraft Capabilities
- 7.5 kg standard weight • 9.0 kg max takeoff weight
- 1.5 kg gimbal payload • DG-L20T full sensor suite
- Multi-rotor hover: 0–17 m/s • Fixed-wing cruise: 17–30 m/s
- 6000 m service ceiling • Wind resistance up to 12 m/s
- Quad-GNSS: GPS + Galileo + BeiDou + GLONASS
- RTK positioning: 1 cm + 1 ppm horizontal accuracy
- ADS-B receiver (1090ES) for airspace awareness
- Operating temperature: −20°C to 50°C
Two Modes. One Seamless Transition.
The aircraft automatically transitions between multi-rotor and fixed-wing modes during flight, combining vertical takeoff precision with long-range cruise efficiency.
Multi-Rotor Mode
Vertical takeoff, hover, and precision landing. Speed range 0–17 m/s. Ascent 4 m/s, descent 3 m/s. Used for takeoff from nest, hovering inspections, and precision landing on the nest pad.
Fixed-Wing Mode
Efficient cruise at 17–30 m/s for maximum range and endurance. Ascent/descent 5 m/s. Tilt-rotor transition is automatic. Covers long corridors — pipelines, power lines, railways.
Auto Transition
Seamless switch between modes at cruise speed threshold. Aircraft pitches forward, wingtips tilt, and fixed-wing flight begins. Reverse transition for approach and landing. Fully autonomous.
Quick-Detach E-Type Gimbal Mount
The DG-L20T full sensor suite comes standard with the nest station aircraft. The DG-L50T extended-range gimbal is available with the VTOL Pro upgrade.

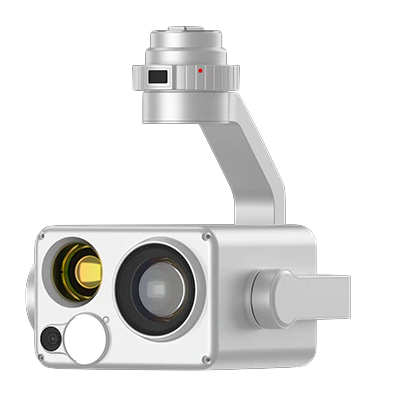

DG-L20T — Full Sensor Suite
The complete package: 20x optical zoom + 12 MP wide-angle + 640×512 thermal + laser rangefinder. Every sensor in one gimbal for missions that require both detailed visual identification and thermal analysis.
| Weight | 810 g |
| Zoom Camera | 8 MP • 20x optical • 240x hybrid • 4K video |
| Wide-Angle | 12 MP • 1/2" CMOS • 4K video |
| Термално | 640×512 VOx • ≤50 mK NETD |
| Laser Rangefinder | 10–1200 m • ±1 m accuracy |
| Temp Range | −20°C to +550°C |

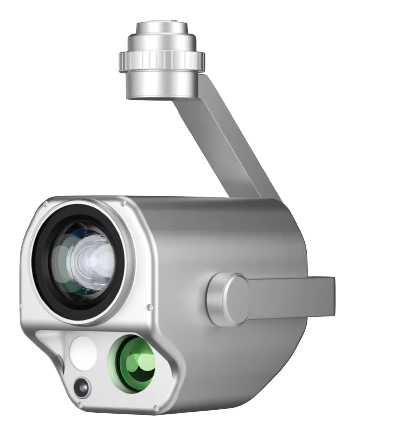

DG-L50T — Extended-Range Sensor Suite PRO ONLY
Available exclusively with the VTOL Pro platform (16.8 kg, 179-min flight time, 19 kg MTOW). Extended-range zoom and enhanced thermal capabilities for large-scale infrastructure corridors requiring maximum detection distance.
| Supported Aircraft | VTOL Pro only (2.2 kg payload capacity) |
| Capabilities | Extended zoom + wide-angle + thermal + laser rangefinder |
| Pro Flight Time | 179 min (vs 107 min Standard) |
| Pro MTOW | 19 kg |
Contact us for VTOL Pro platform specifications and availability.
Industrial-Grade. Fully Autonomous.

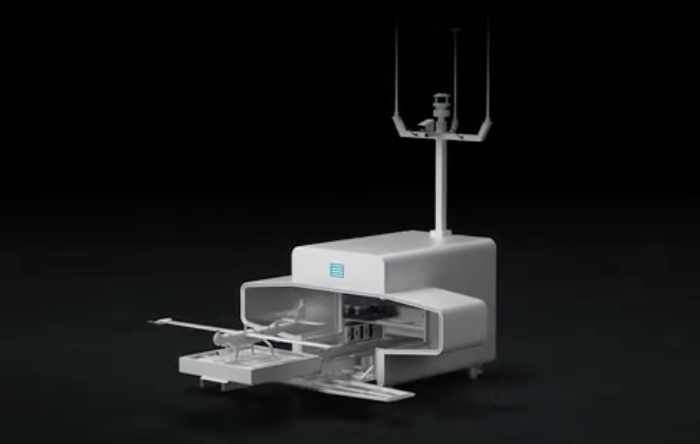

A 590 kg stainless steel nest that launches, recovers, recharges, and redeploys your aircraft autonomously. Automatic battery swap with 6 onboard batteries enables continuous 24/7 operations. Built for extreme environments from −35°C to 50°C.
Nest Capabilities
- Automatic battery swap — 6 battery slots, zero manual intervention
- RTK + visual recognition precision landing
- Weather monitoring: wind, rain, temperature, humidity
- Climate-controlled cabin: −35°C to 50°C operating range
- IP54 protection • 304 stainless steel + aluminum alloy
- 40 kA surge protection • UPS backup power
- 17 km image transmission to Command Center
- Connectivity: Ethernet, 4G, 5G, fiber optic (custom)
- Interior + exterior surveillance cameras
Built for Permanent Deployment
| Dimensions (closed) | 2185 × 2691 × 1500 mm |
| Dimensions (w/ weather station) | 2185 × 2691 × 3880 mm |
| Weight | ≤590 kg |
| Material | 304 Stainless Steel • Aluminum Alloy • Composite |
| Protection | IP54 |
| Operating Temperature | −35°C to 50°C • <95% RH |
| Power Supply | AC 220V 50Hz (110V with transformer) |
| Operating Power | ≤300W standard • 2200W peak |
| Surge Protection | 40 kA |
| Electrical Safety | Overload + leakage (30 mA) |
| Landing System | RTK + Visual QR Recognition |
| Battery Management | 6 slots • Automatic swap |
| Door Type | Side door (motorized) |
| Image Transmission | 17 km direct |
| Communication | Ethernet • 4G • 5G • Fiber (custom) |
| Monitoring | Interior + exterior cameras • Weather station |
What’s Included in the Station
Everything needed for fully autonomous long-range BVLOS operations. Deploy once, operate continuously.
VTOL Aircraft
Tilt-rotor fixed-wing with 107-min endurance, 30 m/s max speed, quad-GNSS, RTK, ADS-B, and interchangeable gimbal mount. 9.0 kg MTOW.
Nest Station
590 kg industrial nest with automatic battery swap, climate control, weather monitoring, RTK landing, IP54 protection, and surge protection.
Gimbal Payload
DG-L20T full sensor suite included: 20x optical zoom + 12 MP wide-angle + 640×512 thermal + laser rangefinder. DG-L50T available with Pro upgrade.
Smart Batteries
LiPo 6S 12,000 mAh batteries (277.2 Wh each). 6 total — 2 in aircraft, 4 in nest charging. Automatic swap between missions.
Command Center
Cloud-based flight management platform. Schedule missions, view live video, manage fleets, control gimbals, and access analytics from any browser.
Learn More →Repeater Base Stations
Deploy along route for extended-range BVLOS. Extends 30 km transmission to cover entire pipeline and power line corridors. Daisy-chain multiple units.
Common Questions
Ready to Monitor Infrastructure at Scale?
Tell us about your corridor, infrastructure, or site. We’ll design a deployment plan with flight routes, repeater placement, and sensor configuration.
